      Risk Matrix (Hub) Report

      The Risk Matrix (Hub) Report can provide a visual summary of all Risk Assessment results. The report gives you the ability to view results at the Spoke level or aggregated across multiple Spokes. Learn how to use this report in the Analytics module

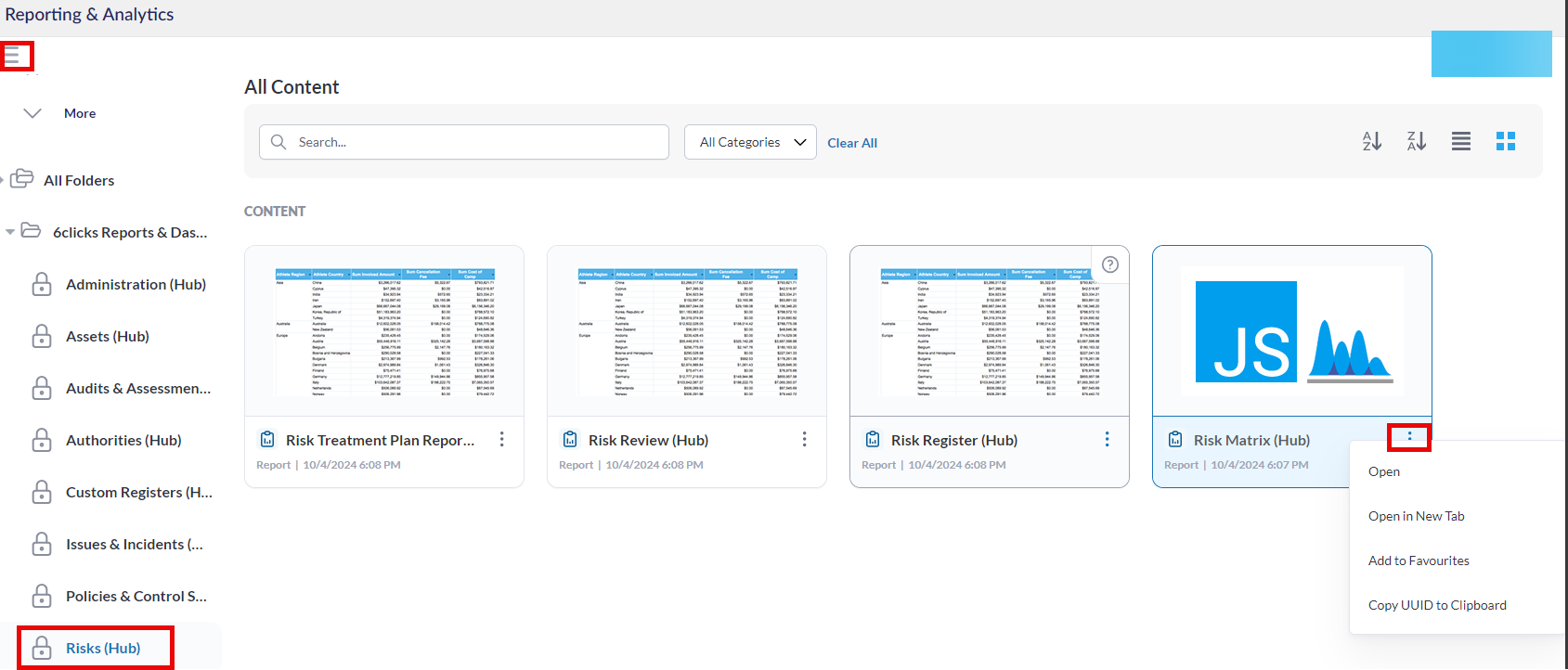

      Navigate to the Analytics tab using the top right menu navigation.

      Select the By Folder Dropdown > 6clicks Reports & Dashboards > Risks.

      Browse for Reports and select the Risk Matrix (Hub) report.

      analytics_riskmatrixhub1

      The report will generate the Risk Matrix based on the data within your Spokes:

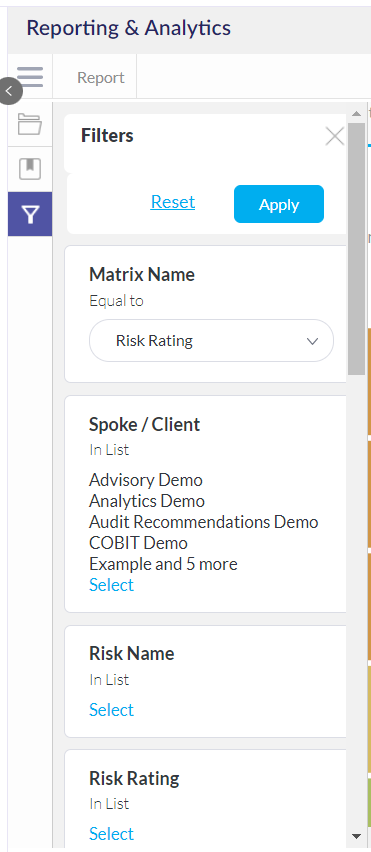

      Using the Filter button on the left panel, you can filter this report to a specific Spoke, Risk Matrix and more:

      6clicks supports the capability of Spokes to configure different Risk Matrices. Where differences occur, this report will not work. The below workarounds will address this:

      1. Filter the report for Spokes with the same Matrix. This will ensure the report displays correctly. It is possible to create a dashboard that shows this report run multiple times for different Spokes - see this article for how to create a Dashboard.
      2. Ensure that the different Matrices across Spokes use a similar name. This will enable the report to be filtered based on the Risk Matrix filter.
      3. Lock down Risk Matrix configuration in the Hub to ensure that all Spokes are using the same Matrix. This article outlines how this can be achieved.
